Executive Summary

The Seitron Novo Combustion Analyzer redefines speed and usability for HVAC service technicians and commercial boiler mechanics. Built around a 7-inch color capacitive touchscreen, the Novo eliminates the clunky physical buttons and nested sub-menus common on legacy test gear. Its stand-out field features include a single plug-and-play flue probe connector, an illuminated water trap window, and an automated dual-range CO dilution pump that protects electrochemical sensors up to 100,000 ppm.

By measuring flue gas parameters, stack draft, and gas valve manifold pressure simultaneously, the Novo allows technicians to perform complete burner setups without swapping hoses or balancing multiple meters. Integrated Bluetooth, USB-C, and thermal printing capabilities generate instant, professional PDF reports on-site. Whether you are running residential maintenance or commissioning commercial modulation boilers, the Seitron Novo delivers fast zeroing cycles, rugged housing, and reliable diagnostic accuracy in a single platform.

AZ Testers Technician Score

AZ Testers Recommended

• Best for: Residential, commercial, and light-industrial HVAC service technicians, boiler mechanics, and burner commissioning specialists who need fast setup and consolidated diagnostic testing.
• Best feature: The 7-inch capacitive touchscreen paired with the single plug-and-play probe connection port.
• Main weakness: Larger overall casing dimensions compared to basic entry-level meters, and screen glass requires care when operating with oil-stained or dirty work gloves.
• Upgrade: Commercial and industrial technicians servicing low-NOx burners, multi-stage commercial boilers, or dual-fuel equipment should select the Novo 3 or Novo 4/4N models to add NO, NO2, and SO2 detection capabilities.

Key Specifications At-A-Glance

Model & Variant Comparison

blockquote>

Pro Tip for Commercial Technicians: When commissioning modulating high-efficiency commercial boilers, tap into port P3 for gas valve manifold pressure while leaving the flue probe in the stack. Use the Novo PRO Mode visual screen. This interface plots flue gas parameters, draft pressure, and manifold pressure concurrently on a live stoichiometric graph. When adjusting gas-valve throttle screws or air-shutter linkages, watch the visual indicator move into the target green zone. This eliminates guesswork, prevents under-firing or over-firing during high-fire/low-fire transitions, and cuts your setup time on multi-stage equipment by 50%.

Touchscreen & Ergonomics

The Seitron Novo abandons the traditional rubberized keypad in favor of a 7-inch color capacitive display. In the field, screen real estate directly impacts diagnostic efficiency. The high-resolution display allows you to monitor six to eight parameters at once without scrolling. Digging through multi-tier menus on a freezing roof or in a dark basement is no longer necessary. The graphical user interface uses high-contrast icons, bright text, and clear color coding.

The touch response is calibrated for technical field use. You can operate the screen with bare fingers or thin nitrile/work gloves without input lag. When navigating through setup menus, setting custom fuel profiles, or naming job folders, the touchscreen behaves like a modern tablet.

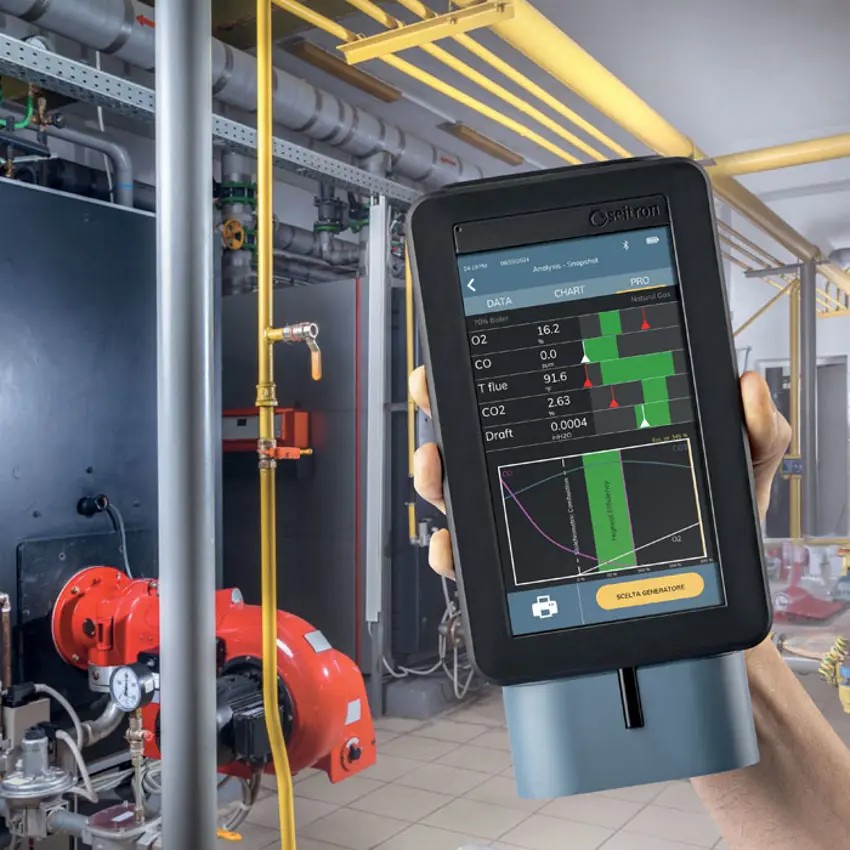

For quick field assessments, PRO Mode translates complex numbers into visual gauge indicators. A stoichiometric combustion graph tracks where the burner is firing relative to ideal air-fuel ratios. If the flame drifts into an excess-air or high-CO condition, the visual marker shifts out of the center green box. This visual feedback lets you make precise mechanical adjustments to gas valves and combustion air dampers while watching the screen from several feet away.

Housing Durability & Included Key Parts

Test gear tossed into the back of a service truck takes a beating. Seitron encloses the Novo inside a heavy-duty, impact-resistant polycarbonate body encased in a shock-absorbing rubber boot. The rubber molding features molded side grips and raised corner bumpers that protect the screen glass during accidental drops onto concrete shop floors.

Key Hardware Highlights

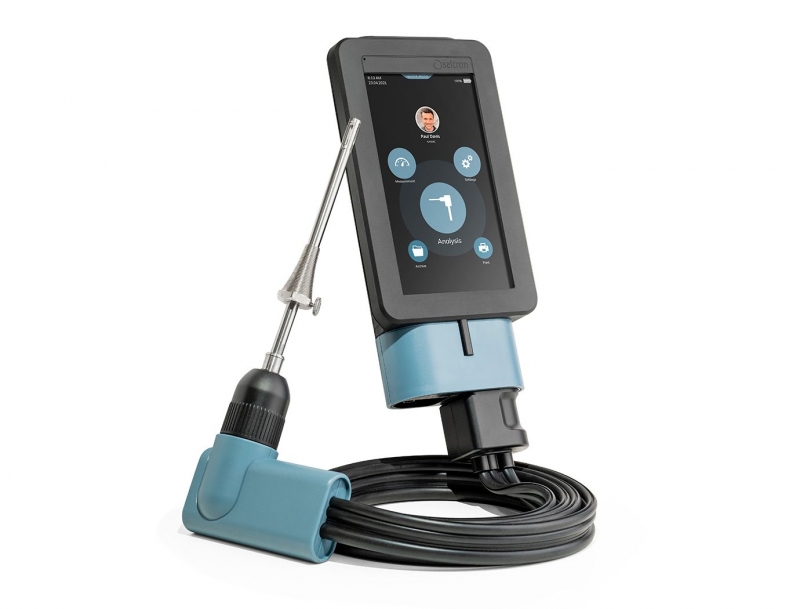

• Unified Probe Connection Port: Traditional analyzers force you to push separate thermocouple plugs, draft tubes, and sample gas lines into different ports on the bottom of the analyzer. The Novo consolidates all three channels into a single, multi-ring quick-connect locking block. You insert one assembly, click it home, and start testing. This design eliminates broken thermocouple pins and sheared hose barbs.
• Backlit Integrated Water Trap: Condensate management is a common failure point for combustion analyzers. The Novo features an integrated water trap recessed into the front face of the instrument. It includes a built-in LED backlight that illuminates the condensate bowl. You can check water levels and filter saturation from across a dark mechanical room. Emptying the trap requires a quick twist-lock removal without opening the main housing.
• Rear Mounting Magnets: High-strength neodymium magnets are flush-mounted into the rear rubber boot. They hold the analyzer securely against steel ductwork, boiler jackets, or appliance casings, keeping your hands free to adjust fuel valves or handle hand tools.
• High-Efficiency Sampling Pump: The internal diaphragm pump provides steady suction up to 135 mbar of stack draft resistance. An internal sensor continuously monitors pump flow rates (0.7 to 1.2 L/min) to ensure stable gas delivery across the electrochemical sensors.

Real-Time Work & Analytical Capabilities

The core strength of the Seitron Novo lies in its analytical processing speed and sensor protection engineering. When you turn on the unit, it initiates an automatic zeroing sequence. The long-life electrochemical O2 sensor reaches operational readiness rapidly, allowing you to sample flue gas shortly after arriving at the appliance.

Advanced Diagnostic Functions

1. Automatic Sensor Dilution (100,000 ppm CO Protection): High carbon monoxide levels destroy standard electrochemical CO sensors. If the Novo detects a spike in CO concentration exceeding pre-set safety thresholds, an internal auxiliary pump activates automatically. This pump injects clean ambient air into the gas stream, diluting the sample going across the sensor. This extends the CO measurement range up to 100,000 ppm (10% volume) while shielding the sensor element from saturation and premature failure.
2. Simultaneous Gas Pressure & Combustion Analysis: The Novo includes built-in piezoresistive pressure sensors. By connecting a pressure hose to port P3, you can read gas valve manifold pressure (inWC or mbar) alongside stack temperature, draft pressure (port P1), net efficiency, excess air, O2, and CO levels. You no longer need to setup a separate digital manometer to adjust gas pressures while checking flue emissions.
3. Multi-Fuel Compatibility: Pre-programmed with 15 standard fuel profiles including Natural Gas, Propane, Fuel Oil #2, Fuel Oil #6, Wood, Pellets, and Biogas. You can also edit and save custom fuel profiles with specific fuel constants for specialized industrial burners.
4. Tightness & Draft Testing: Built-in software routines guide you step-by-step through pipe tightness pressure-decay tests and differential temperature measurements across supply and return lines.

Data Management & Customer Reports

Collecting accurate combustion data is only half the job; presenting it clearly to equipment owners and building managers completes the workflow. The Seitron Novo offers flexible options for saving, exporting, and printing diagnostic reports.

1. Wireless Bluetooth Connectivity & Mobile App

Using the Seitron Smart Analysis app (available for iOS and Android), the analyzer streams real-time test data directly to your smartphone or tablet over a Class 1 Bluetooth connection (range up to 300 feet in open line-of-sight). From the app, technicians can:

• Monitor live readings remotely while making burner adjustments at a panel down the line.
• Take digital photos of the equipment, burner flame, or nameplate and attach them directly to the record.
• Generate PDF or CSV combustion reports branded with your company name, address, technician ID, and logo.
• Email completed reports to the client or service dispatch before leaving the service call.

2. Built-In Thermal Printer Option (-P Models)

For technicians working in sites with poor cellular signal or for commercial facilities requiring physical receipts taped inside boiler jackets, Novo -P variants feature an integrated impact-resistant thermal printer. Located at the top of the unit, it prints high-contrast paper tickets in seconds. Replacing paper rolls is simple with a drop-in loading mechanism.

3. QR Code Data Transfer

If Bluetooth is disabled or un-paired, the analyzer can display a dynamic QR code on its 7-inch screen. Scanning the QR code with your phone camera imports all current test parameters into the mobile app instantly, creating a digital report without pairing devices.

Advantages (Pros) & Limitations (Cons)

Advantages (Pros)

1. Streamlined Single-Connector Probe: Combining flue gas, draft, and thermocouple connections into one plug-and-play block speeds up setup times and eliminates damaged hose connectors.
2. Automated CO Dilution System: Protects the CO electrochemical sensor up to 100,000 ppm, preventing costly sensor replacements when servicing cracked or soot-plugged heat exchangers.
3. High-Visibility 7-Inch Touchscreen: The intuitive graphical user interface and PRO Mode visual tuning graphs make reading data effortless, even in dimly lit mechanical rooms.
4. All-in-One Multi-Meter Capabilities: Simultaneous draft, manifold pressure, differential temperature, and combustion analysis eliminate the need to lug separate digital manometers to the job.
5. Illuminated Water Trap Assembly: Front-facing water trap with an LED backlight makes monitoring condensate levels simple and straightforward.

Limitations (Cons)

1. Touchscreen Maintenance: The capacitive glass display accumulates smudges, soot, and grease quickly, requiring regular wiping with micro-fiber cloths and careful handling around dark oil burners.
2. Larger Frame Footprint: To accommodate the 7-inch display and optional built-in printer, the housing is larger and heavier than basic entry-level residential analyzers.
3. Thermal Paper Fading: Printed paper tickets fade over time when exposed to heat, sunlight, or chemical fumes, requiring digital PDF logging for permanent facility archives.

Technician-Focused FAQs

1. Can I calibrate or swap sensors myself in the field, or does the Novo require factory servicing?

The Seitron Novo uses pre-calibrated, field-replaceable smart sensors. If a sensor reaches the end of its operational life, you can order a replacement sensor module, remove the rear casing cover, and snap the new sensor into place. The analyzer reads the calibration data stored directly on the sensor microchip without requiring manual factory re-zeroing or specialized software.

2. How does the CO auto-dilution feature protect the instrument on a badly over-firing burner?

When the primary electrochemical CO sensor detects carbon monoxide levels exceeding set thresholds (typically above 4,000 to 5,000 ppm depending on setup), the unit engages a secondary dilution air pump. Fresh ambient air mixes into the sample stream at a precise ratio. This keeps the actual concentration hitting the sensor element within safe physical limits while the microprocessor calculates and displays the true high-PPM value (up to 100,000 ppm) on the screen.

3. Why is the single probe connector better than conventional individual hose barbs?

Traditional setups use three separate connections: a rubber draft hose, a flue gas sample line, and a mini-thermocouple plug. These individual lines twist, snag on ladder rungs, pull free, or break thermocouple pins when working in tight boiler quarters. The Novo’s single connector encases all three pathways into a heavy-duty strain-relief boot with a single locking tab, providing a sealed connection every time.

4. Can I read gas valve inlet pressure and flue gas combustion at the exact same time?

Yes. By connecting a static pressure tube from the gas valve’s pressure tap to port P3 on the side of the analyzer, the internal piezoresistive pressure sensor reads manifold or line pressure continuously. The touchscreen displays live gas pressure alongside stack temperature, draft (port P1), excess air, O2 percentage, and CO readings simultaneously.

5. Should I buy the model with the integrated printer (-P) or stick with the standard Bluetooth app model?

If your work consists mainly of residential or light commercial service where customers prefer email invoices, the standard model with Bluetooth app integration is ideal. However, if you perform heavy commercial boiler maintenance, municipal facility service, or industrial plant work where physical inspection tickets must be signed and left inside the burner control cabinet, the integrated printer model (Novo 1-P, 3-P, or 4-P) is the better choice.

Final Technician Verdict

The Seitron Novo Combustion Analyzer earns a confident BUY recommendation for serious HVAC technicians, boiler mechanics, and commercial combustion specialists.

blockquote>

AZ Testers Rating: 9.4 / 10 — AZ Testers Recommended
"The Seitron Novo consolidates your field gear by merging a full-featured combustion analyzer, digital manometer, and draft gauge into a rugged, touchscreen unit."

By merging a combustion analyzer, dual-channel manometer, and draft gauge into a single touchscreen device, the Novo streamlines field diagnostics and reduces tool bag weight. The single plug-and-play probe connector, auto-dilution CO protection, and illuminated water trap solve common field maintenance frustrations.

If your primary focus is residential atmospheric equipment, the Novo 1 provides a fast, accurate setup that speeds up annual maintenance checks. For commercial specialists tuning low-NOx burners, modulating boilers, and dual-fuel industrial plants, upgrading to the Novo 3 or Novo 4 provides the expanded gas sensing and diagnostic power needed to handle demanding combustion jobs efficiently.
