Executive Summary

Service technicians operating out of a service truck do not care about sleek marketing claims or bloated specification sheets. The primary question on every field technician mind is direct. Will this tool help me diagnose or fix the problem faster, accurately, safely, and reliably, and is it worth the money? That should become the organizing principle of the entire article.

The Triplett LVPRO40 10Gb Low Voltage Cable Tester answers that question with a resounding yes for daily troubleshooting, qualification, and network verification. Built as a multi-functional field instrument, the LVPRO40 bridges the gap between basic wiremap blocks and expensive multi-thousand dollar certification analyzers. Manufacturer literature highlights 10Gb switch link negotiation, high-power Power over Ethernet standard detection, and Time Domain Reflectometry length measuring. In actual jobsite environments, the meter excels at isolating split pairs and measuring distance to open or short faults. It also confirms switch port speeds up to 10G and validates active PoE power up to the 802.3bt standard. It stores up to 250 individual test records for client reporting. This makes it an essential diagnostic workhorse for structured cabling, IP video surveillance, access control, and telecom technicians.

AZ Testers Technician Score

• Best For: Structured cabling technicians, IP CCTV integrators, access control installers, and network field service techs troubleshooting mixed copper drops.
• Best Feature: Active 10G Ethernet link speed advertisement verification combined with loaded 802.3bt PoE detection.
• Main Weakness: Monochromatic backlit LCD screen lacks full-color graphical wiremap diagrams found on higher tier qualifiers.
• Upgrade Option: Field engineers requiring formal ANSI/TIA-568 Category 6A pass or fail certification must step up to Level 2G copper certifiers.

Key Specifications At-A-Glance

Triplett LVPRO Series Model Comparison

• LVPRO20: Entry model with TDR cable length, wiremap, and 10M or 100M link speed detection. Designed for basic residential and alarm jobs.
• LVPRO30: Adds 1G link speed testing, 802.3af and 802.3at PoE detection, plus 250 onboard report storage records. Great for commercial voice and data.
• LVPRO30RF: Includes all LVPRO30 features plus coaxial RF wireless remote support. Ideal for cable TV and broadband installers.
• LVPRO40: Flagship model with 10G Base-T link speed detection, 802.3bt Type 4 high-power PoE testing, and 8 smart remotes. Built for modern data networks.

Pro Tip for Commercial Technicians: Commercial network service calls frequently involve mixed infrastructure. Older 1G switches often coexist with newer 10G access switches and 90 watt 802.3bt PoE Type 4 injectors. When dispatching to a field fault, always run a port test on the active switch outlet before connecting high-draw IP devices. Verifying speed negotiation and PoE voltage under load prevents premature device reboots. This eliminates endless back and forth calls with IT network administrators.

Field Performance & Analytical Capabilities

Touchscreen & Ergonomics

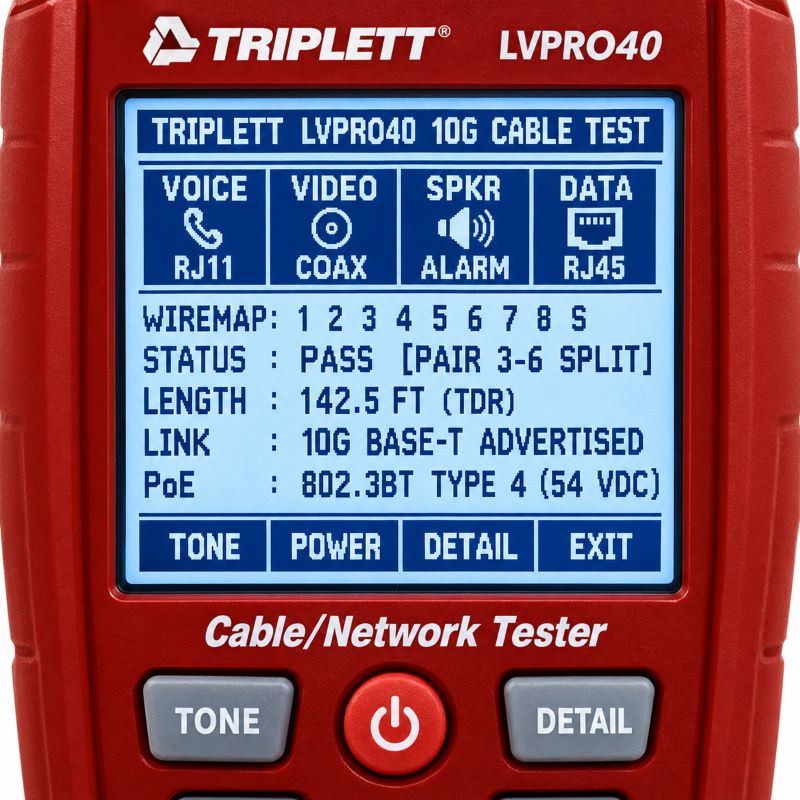

The Triplett LVPRO40 utilizes a 2.8 inch backlit graphical LCD display paired with tactile silicone pushbuttons. Many modern tools push toward capacitive touchscreens. However, field service technicians working in dark dropped ceilings, tight crawlspaces, or unconditioned telecom closets often prefer physical buttons. Touchscreens fail or lag when operated with dirty fingers or work gloves. Tactile buttons deliver positive response every single time.

The front panel layout features dedicated buttons for Tone, Power, Detail, ID, and Exit alongside a four way navigation pad. Menu navigation is simple and direct. Technicians can switch between cable testing, PoE analysis, link speed verification, and saved report management in seconds without sifting through nested soft menus.

Housing Durability & Included Key Parts

Field tools spend life bouncing around in tool bags, rolling across truck beds, and dropping onto concrete floors. The LVPRO40 is enclosed in a high impact ABS housing wrapped in a thick red rubber boot. Top side connectors feature built in RJ45, RJ11, and F connector coaxial ports. This design eliminates the need for delicate adapter leads when testing standard copper networks or coaxial drop lines.

The standard kit equips field technicians with key accessories right out of the case:

• Eight numbered RJ45 smart wiremap remotes for rapid multi drop location mapping.
• USB cable for downloading test logs to a laptop or workstation.
• RJ45 to RJ45 patch cable and RJ45 to alligator clip adapter for bare wire or alarm panel testing.
• Heavy duty padded carrying case to keep remotes organized inside the truck.

Real-Time Work & Analytical Capabilities

The gap between specification sheets and field reality becomes obvious during live troubleshooting. Simple continuity meters show lights for pin 1 through pin 8, but they can not detect split pairs. A split pair occurs when wire pairs are scrambled across pins while maintaining end to end pin continuity. This flaw passes basic continuity tests but causes severe crosstalk and packet loss on high speed Ethernet lines. The LVPRO40 active TDR engine detects split pairs instantly, saving hours of fruitless network troubleshooting.

Furthermore, the Time Domain Reflectometry function measures cable length and pinpoints exact distances to open breaks or short circuits up to 1,999 feet. If a cable was severed by a drywall screw or pinched inside a conduit bend, the meter gives the exact location. Adjustable Velocity of Propagation allows calibration for specialized cable types. This setting ensures length accuracy across different wire gauges and insulation materials.

On active networks, the meter connects directly to switch ports to query advertised speeds up to 10G Base-T. It also performs active load testing on PoE lines. It identifies whether power originates from an endspan switch or midspan injector while confirming compliance with 802.3af, 802.3at, and 802.3bt power standards up to 90 watts.

Data Management & Customer Reports

Modern commercial clients and general contractors demand proof of performance before approving invoices. The LVPRO40 stores up to 250 full test records in non volatile internal memory. Each saved record includes detailed wiremap data, cable length, link speed analysis, PoE voltage results, and time stamps.

Connecting the tester to a laptop via the included USB cable allows technicians to upload saved data into the PC software. Within the software, users can organize reports by job site, add technician notes, and export professional PDF or CSV records. Presenting printed test documentation transforms standard service calls into verified, high value technical deliverables.

Advantages (Pros) & Limitations (Cons)

Advantages (Pros)

1. Versatile Multi Cable Testing: Supports twisted pair CAT5e through CAT8, coaxial cables, telephone lines, alarm wiring, and speaker cables with a single compact meter.
2. Active 10Gb Network Link Verification: Instantly identifies advertised switch port speed capabilities up to 10G Base-T, eliminating speed negotiation guesswork.
3. Advanced 802.3bt High Power PoE Detection: Accurately tests high wattage PoE circuits supporting modern pan tilt zoom cameras, outdoor access points, and smart lighting systems.
4. Onboard Memory for 250 Test Reports: Captures comprehensive diagnostic data onboard and exports clean PDF documentation via the PC application.
5. Robust 70VDC Input Protection: Shields internal components against inadvertent connection to energized telecom or PoE lines, preventing costly meter damage.

Limitations (Cons)

1. Monochromatic Display: Screen lacks full color graphical wiremap visuals, relying on clear but basic segment text and pin numbers.
2. Qualification Only Not Certification: Verifies speed capability and cable physical parameters but does not issue ANSI/TIA-568 compliance certification pass or fail documentation for cabling system warranties.
3. USB Only PC Data Transfer: Requires a wired USB connection to a Windows PC for report extraction, lacking wireless Bluetooth or mobile app sync capabilities.

Technician-Focused FAQs

1. Can the Triplett LVPRO40 certify Category 6A installations for manufacturer 25 year warranties?

No. The LVPRO40 is a high level cable qualifier and network diagnostic tester, not an ANSI/TIA-568 Level 2G cable certifier. It tests TDR length, split pairs, wiremaps, return loss quality, and active 10G switch speed negotiation. However, formal system warranties require a certification analyzer that performs RF swept frequency measurements up to 500 MHz or 2000 MHz.

2. How does the 10Gb network speed test work on active switch ports?

When connected to an active Ethernet switch port, the LVPRO40 communicates via auto negotiation pulses. It queries the switch physical layer to determine all advertised connection speeds and pin configurations without requiring a remote unit on the far end.

3. Will plugging the tester into an energized PoE line damage the internal circuitry?

No. The LVPRO40 features built in 70VDC input protection across its test interfaces. It safely detects active PoE voltages up to 802.3bt standards and protects internal components against accidental line surges.

4. Why is adjustable Velocity of Propagation important for length testing?

Signals travel through copper wire at a fraction of the speed of light, determined by the cable insulation dielectric constant. Standard CAT6 wire has a different setting than RG6 coaxial cable or alarm wire. Adjusting the setting in the LVPRO40 ensures that TDR distance to fault measurements remain accurate within 2% across all cable types.

5. How do the included eight RJ45 remotes save time during installation projects?

Instead of walking back and forth between the patch panel and wall drops for every single cable, a technician places remotes across multiple rooms. Returning to the telecom closet, the technician plugs patch panel drops into the meter one after another. The meter reads the remote ID number and wiremap instantly, cutting mapping time by up to 75%.

Final Technician Verdict: Is It Worth The Money?

The Triplett LVPRO40 10Gb Cable Tester is priced at approximately 700 dollars. For structured cabling installers, security integrators, and field service technicians, this instrument represents exceptional value. Buying a full Category 6A certification tester costs between 10,000 and 15,000 dollars. That high cost is difficult to justify for daily maintenance, troubleshooting, and small to medium installation projects.

The LVPRO40 fills the critical gap between cheap 50 dollar continuity boxes and ultra expensive certifiers. It answers every primary field question with clarity. TDR pinpointing locates hidden shorts and open breaks in seconds. Adjustable settings and split pair detection eliminate false passes. Input protection guards the unit against accidental live line connection. The ability to verify 10G switch ports, test 802.3bt high power PoE, and print 250 professional PDF reports turns routine service calls into profitable work.

If your daily work involves maintaining commercial networks, installing IP cameras, or troubleshooting mixed copper infrastructure, the Triplett LVPRO40 belongs in your truck.
