Testo 862-1 Pocket-Size Thermal Imager Review: The Tech-in-the-Truck Field Review
1. Executive Summary

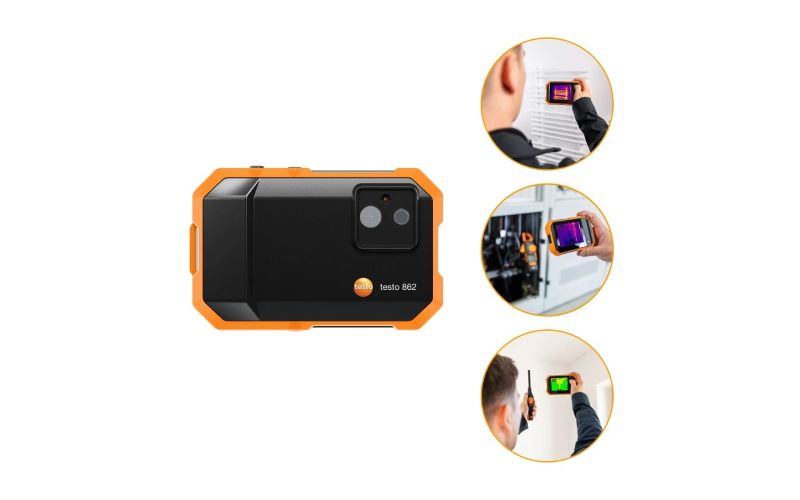

The Testo 862-1 pocket-size thermal imager fits right in your shirt pocket. It offers rapid thermal diagnostics for HVAC service technicians, commercial electricians, and facility maintenance engineers. You get a 160 x 120 pixel infrared resolution. It features Fusion mode to blend visual and thermal images. This tool helps you quickly spot overloaded circuits, failing compressor bearings, or radiant heat blocks. It survives a 1.5 meter drop and carries an IP54 rating. It is a rugged, fast-booting imager for daily field use.
2. AZ Testers Technician Score
- Performance: 8/10
- Accuracy: 9/10
- Easy of Use: 10/10
- Durability: 9/10
- Features: 8/10
- Safety: 9/10
- Value: 9/10
- Overall: 8.8/10
AZ Testers Recommended
- Best for: Daily spot checks, HVAC troubleshooting, and electrical panel inspections.
- Best feature: Pocket-sized form factor with visual Fusion mode.
- Main weakness: Limited to 160 x 120 resolution; not for distant utility line inspections.
- Upgrade: Commercial technicians needing more detail should consider the Testo 862-2.
3. Key Specifications At-A-Glance
| Parameter/Spec | Manufacturer Specifications | Service Technicians Field Impact |
|---|---|---|
| IR Resolution | 160 x 120 pixels | Good for close-up panel and duct work. |
| Thermal Sensitivity | < 50 mK | Detects minor temperature shifts accurately. |
| Field of View (FOV) | 40 degrees x 30 degrees | Captures a wide area in tight mechanical rooms. |
| Display | Visual and IR Fusion Mode | Easy to identify the exact failing component. |
| Connectivity | Bluetooth to Testo 770-3 / 605i | Pulls clamp meter or humidity data onto the image. |
| Battery Life | 3 hours (USB-C Rechargeable) | Lasts multiple service calls without a midday charge. |
| Durability | IP54 Rating, 1.5 meter drop | Survives tool bag transport and ladder falls. |
| Price | Around 499 dollars | Excellent return on investment for daily diagnostics. |
4. Model Variants Comparison
| Feature | Testo 862-1 | Testo 862-2 | Testo 862-2 Kits |
|---|---|---|---|
| IR Resolution | 160 x 120 pixels | 256 x 192 pixels | 256 x 192 pixels |
| Maximum Zoom | 4x Digital | 6x Digital | 6x Digital |
| Base Price | 499 dollars | Approx 650 dollars | 685 to 850 dollars |
| Best Application | General HVAC | Detailed commercial electrical | Mold or deep electrical |
Pro Tip for Commercial Technicians: If you inspect large commercial electrical cabinets or high ceiling ductwork, upgrade to the Testo 862-2. The 256 x 192 resolution provides sharper images from farther away. You can also buy the 862-2 in an Electrical Kit or Mold Kit. These kits include paired Bluetooth meters for seamless data overlay.
5. Field Work & Analysis
What problem does this product solve?
Technicians often guess at temperature differentials because traditional cameras are too bulky to carry everywhere. The Testo 862-1 solves this by living in your pocket. You can pull it out instantly to diagnose airflow restrictions or hot breakers safely.
Touchscreen & Ergonomics
This imager is the size of a smartphone. It slides easily into a pocket or tool belt. You do not need to lug around a heavy pistol-grip camera. The interface is intuitive and smartphone-like. You navigate menus quickly with gloved hands.
Housing Durability & Included Key Parts
Testo built this tool for the field. The IP54 housing resists dust and splashing water. It survives a 1.5 meter drop onto concrete. The package includes a lanyard, soft case, and a USB-C charging cable. A 15 minute quick charge gives you 25 minutes of emergency run time.
Real-Time Work & Analytical Capabilities
How well does it solve problems in the field?
The fixed focus lens requires no manual adjustment. You just point and shoot. The Fusion technology overlays visual details onto the thermal map. You can instantly spot a bad breaker or a restricted filter drier. The DeltaHeat function provides smart diagnostics for radiator performance.
Data Management & Customer Reports
The imager has 12 GB of internal storage. It holds thousands of images in JPEG or BMT formats. You can use the free Testo IRSoft PC software. This lets you build professional PDF reports. Showing a thermal image to a customer builds trust and justifies the repair cost.
6. Advantages (Pros) and Limitations (Cons)
Advantages (Pros)
- Extremely compact and easy to carry on every service call.
- Fast boot time allows for immediate troubleshooting.
- Fusion mode makes component identification simple.
- Bluetooth links with Testo clamp meters and hygrometers.
- Durable IP54 housing withstands real world abuse.
Limitations (Cons)
- The 160 x 120 resolution lacks sharpness for long distance scans.
- Fixed focus lens restricts close up micro electronics inspection.
- Does not replace high end imagers for specialized envelope auditing.
7. Technician-Focused FAQs
Will this camera show mold behind drywall?
No thermal imager sees through walls. It detects surface temperature differences caused by moisture. You use this temperature data to locate potential mold zones.
Can I connect my Testo clamp meter to this imager?
Yes. The Testo 862-1 connects via Bluetooth to the 770-3 clamp meter. The amperage reading displays directly on your thermal image for electrical reports.
Is the 160 x 120 resolution enough for residential HVAC?
Yes. It provides plenty of detail for checking coil temperatures, locating duct leaks, and inspecting residential breaker panels.
How do I charge the battery in the field?
You charge the integrated lithium battery via the standard USB-C port. You can use a vehicle charger or a portable power bank between calls.
Does the camera require annual calibration?
Testo calibrates the unit at the factory. Annual calibration is only necessary if you require certified documentation for strict commercial maintenance contracts.
8. Final Technician Verdict
Is it worth the money, and who should buy it?
Buy the Testo 862-1 if you are an HVAC technician or maintenance engineer. It quickly identifies thermal anomalies safely and reliably. At 499 dollars, it pays for itself by finding hidden issues fast. It does better than competing cheap models by offering professional wireless connectivity and reporting software. It bridges the gap between basic spot thermometers and expensive high resolution cameras. It is a perfect daily carry tool for the truck.
