Testo 558s Digital Manifold Review: Tech-in-the-Truck Field Evaluation
Executive Summary
Time is money on a commercial service call. Every HVAC/R technician asks a critical question before buying new test equipment. Will this tool help me diagnose or fix the problem faster, accurately, safely, and reliably? Is it worth the money? The Testo 558s Digital Manifold answers this with a firm yes. It takes the solid foundation of the 557s and adds a massive color touchscreen. It features a 4-way valve block to eliminate constant hose swapping. It bridges the gap between old analog gauges and modern digital analysis. The tool calculates superheat and subcooling in real time. It logs live data for system performance reports. The kit relies on wireless Bluetooth probes for temperature and vacuum. This makes field measurements incredibly fast and accurate. The color touchscreen makes reading complex data easy in dark mechanical rooms. You can speed up commercial commissioning and improve diagnostic accuracy. The Testo 558s is a highly capable and heavy-duty workhorse.
AZ Testers Technician Score
- Performance: 9.5 / 10
- Accuracy: 9.0 / 10
- Ease of Use: 9.0 / 10
- Durability: 8.5 / 10
- Features: 9.5 / 10
- Safety: 9.0 / 10
- Value: 8.0 / 10
Overall Score: 8.9 / 10 — AZ Testers Recommended
- Best for: Commercial HVAC service technicians, VRF/VRV service technicians, and tech-savvy installation crews.
- Best feature: The large color touchscreen interface paired with the 4-way valve block.
- Main weakness: The touchscreen can be finicky if your hands are covered in refrigeration oil or heavy rain.
- Upgrade: This is the current top-tier model. Technicians who prefer tactile buttons over a touchscreen should look at the Testo 557s.
Key Specifications At-A-Glance
| Parameter / Spec | Manufacturer Specifications | Service Technicians Field Impact |
|---|---|---|
| Pressure Range | -14 to 870 psi | Safely handles high-pressure systems like R-410A and A2L refrigerants. It prevents internal transducer blowout. |
| Pressure Accuracy | ±0.5 percent full scale | Delivers precise saturation temperatures. This provides dead-on superheat and subcooling calculations in the field. |
| Operating Temperature | 14°F to 122°F | Screen performs well in standard conditions. It may struggle slightly in extreme freezing walk-in coolers compared to LCD models. |
| Refrigerant Profiles | Over 90 profiles | Eliminates sliding P/T charts. You easily push updates from your phone for new refrigerants. |
| Display Type | Color Touchscreen | Makes analyzing data visually intuitive. It is exceptionally bright in dark commercial boiler rooms. |
| Protection Class | IP54 rating | Built for the service truck. It survives sudden rain showers and job site grime without shorting out. |
Advanced Digital Manifold Series Comparison
| Feature | Part 0564 5581 01 | Part 0564 5582 01 | Part 0564 5583 01 |
|---|---|---|---|
| Manifold Type | Digital Touchscreen Base | Smart Vacuum Kit | Smart Kit with Hoses |
| Temperature Probes | Not Included | 2x Wireless 115i Clamps | 2x Wireless 115i Clamps |
| Vacuum Probe | Not Included | 1x Wireless 552i Probe | 1x Wireless 552i Probe |
| Refrigerant Hoses | Not included | Not included | Included (Set of 4) |
| Ideal User | Techs replacing a broken manifold | Techs needing wireless evacuations | Apprentices needing a complete setup |
Pro Tip for Commercial Technicians: The 4-way valve block on the 558s is excellent for standard service work. However, commercial technicians working on large tonnage chillers should still use caution. You should always pair this manifold with dedicated vacuum-rated core removal tools. Use large-diameter hoses to bypass the manifold during a deep evacuation. Utilize the wireless Testo 552i micron gauge directly on the system port. This guarantees the truest decay test results and saves hours of vacuum time.
Main Points Useful for Work and Analysis in the Field
Touchscreen and Ergonomics
The prompt for modern tech gear often assumes a touchscreen is the ultimate upgrade. Testo embraced that with the 558s. It features a massive and bright color touchscreen. The visual layout is stunning. You can see pressures, temperatures, and calculated targets in color-coded sections. In the field, you can operate the manifold quickly. However, heavy leather work gloves or oil-soaked hands can make the screen less responsive. The 4-way valves turn smoothly with a solid stopping point. The integrated hook is heavy-duty metal. The display is recessed to protect the glass from face-down drops.
Housing Durability and Included Key Parts
Manufacturer specs tout an IP54 rating. The 558s is built inside a heavy-duty rubberized housing. It easily survives bouncing around on a van floor. It takes tumbles from condenser fan grilles without breaking the internal board. The smart kit includes wireless 115i temperature clamps and a 552i wireless vacuum probe. These tools eliminate the hassle of tangled wires. They connect automatically to the manifold upon startup. They provide incredible range across large commercial rooftops.
Real-Time Work and Analytical Capabilities
This tool pays for itself during diagnostics and commissioning. You do not have to check an analog gauge and read a separate thermometer. You do not have to pull out your phone and do the math. The 558s displays high side, low side, superheat, and subcooling instantly. The visual graph features on the screen show pressure trends over time. The 4-way block allows you to connect a vacuum pump and refrigerant tank simultaneously. You purge hoses once and dial in the charge. The manifold also features a temperature-compensated tightness test mode.
Data Management and Customer Reports
The gap between a good technician and a highly paid technician is documentation. The 558s connects seamlessly via Bluetooth to the Testo Smart App. You can step away from a screaming compressor. You can sit in your quiet truck and watch system vitals live. The app generates a professional PDF report with a single tap. You can email this directly to the facility manager. This justifies why a TXV replacement was necessary. It elevates your professionalism and protects you against callbacks.
Advantages (Pros)
- The massive color touchscreen provides instant visual clarity. It color-codes data so you can spot system issues at a glance.
- The 4-way valve block speeds up recovery and evacuation. It eliminates the constant need to swap hoses under pressure.
- The visual graphing capability directly on the screen is great. You can spot pressure drops during nitrogen tests without opening an app.
- The Testo Smart App is incredibly stable. It allows for remote monitoring and instant PDF report generation for customers.
- It is safely engineered to work with modern A2L refrigerants. The manifold will not become obsolete in three years.
Limitations (Cons)
- The touchscreen can be unresponsive if your hands are coated in heavy refrigeration oil. It also struggles if you are wearing thick winter gloves.
- The color screen consumes more battery power than standard LCD screens. You will need to replace the AA batteries more frequently.
- The 4-way block makes the manifold heavier and bulkier than 2-way models. It takes up more space in your tool bag.
Technician FAQs
1. Does the Testo 558s measure vacuum accurately in microns?
Yes, but not through the manifold block itself. The kit includes the Testo 552i wireless probe. You attach this probe directly to the service port. It measures deep vacuum in microns and sends the reading to the manifold screen.
2. How well does the touchscreen work in the freezing cold?
The color touchscreen is rated down to 14 degrees Fahrenheit. It will still function in a freezing walk-in cooler. However, it may respond slightly slower than a traditional membrane button manifold like the 557s.
3. Will this manifold handle the new A2L refrigerants coming into the market?
Yes. The Testo 558s is fully compatible with A2L refrigerants like R-454B. You do not need a new manifold for new refrigerants. You simply update the Testo Smart App on your phone.
4. Can I see pressure trends directly on the manifold without my phone?
Yes. One of the biggest advantages of the 558s is the onboard graphing capability. You can watch pressure curves and temperature changes over time directly on the large color screen.

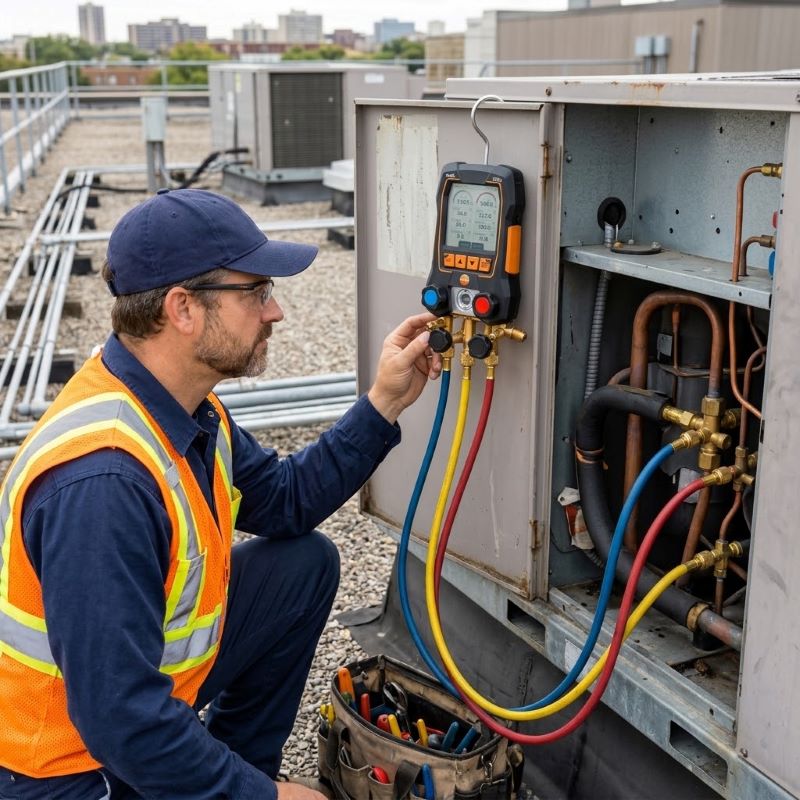

5. How well do the wireless probes work on commercial rooftops?
The wireless 115i clamps and 552i probe have excellent Bluetooth range. They communicate flawlessly with the manifold up to a couple hundred feet away in open air.
Final Technician Verdict
Buy. The Testo 558s Digital Manifold is a phenomenal investment. It is designed for the tech-forward commercial service technician or installation crew. It bridges the gap between old-school durability and modern diagnostics perfectly. Your goal is to diagnose problems rapidly. You want to charge systems accurately using live superheat and subcooling. You need to pull vacuums without swapping hoses constantly. This tool delivers on all fronts. The color touchscreen makes analyzing complex data incredibly easy. The 4-way valve block speeds up complete system overhauls. The wireless probes eliminate tangled cords. For the price, it provides a massive return on investment. You save time, reduce callbacks, and enhance customer trust with professional reports.
