Testo 310 II Combustion Analyzer Review: High-Value Flue Gas Analyzer for Service Techs
Executive Summary: The Tech-in-the-Truck Quick Take
The Testo 310 II Combustion Analyzer (Part # 0563 3104 01 / 0563 3105 01) is an entry-level, entry-priced flue gas analyzer redesigned specifically for residential and light commercial HVAC service technicians. Building on the field-tested reliability of the original Testo 310, the II-generation unit adds a 7-line graphic display, customizable parameter screens, and Bluetooth 5.0 connectivity for direct integration with the Testo Smart App. Operating as a complete combustion efficiency analyzer, it measures oxygen (O2), carbon monoxide (CO up to 4,000 ppm), flue draft, and differential pressure while calculating net efficiency (η), carbon dioxide (CO2), and flue gas loss.
Whether you need a daily flue gas monitor, a portable stack gas analyzer for residential furnace tune-ups, or a reliable exhaust gas analyzer to verify heat exchanger safety, the Testo 310 II balances rugged jobsite durability with fast 30-second sensor zeroing. It serves as an essential flue gas testing tool and entry-level gas tester, making it a top-tier combustion testing tool for technicians who want smart digital reporting without the $2,000+ price tag of high-end commercial rigs.
Overview: What’s New in the Testo 310 II?
The original Testo 310 was a staple on service trucks for years because it was simple, tough, and affordable. However, reading basic monochrome displays and printing physical paper receipts felt increasingly outdated as smart tools took over the trade.
The Testo 310 II addresses those shortcomings directly. While keeping the core two-sensor (O2 and CO) architecture, Testo revamped the hardware and firmware to give techs a modern workflow:

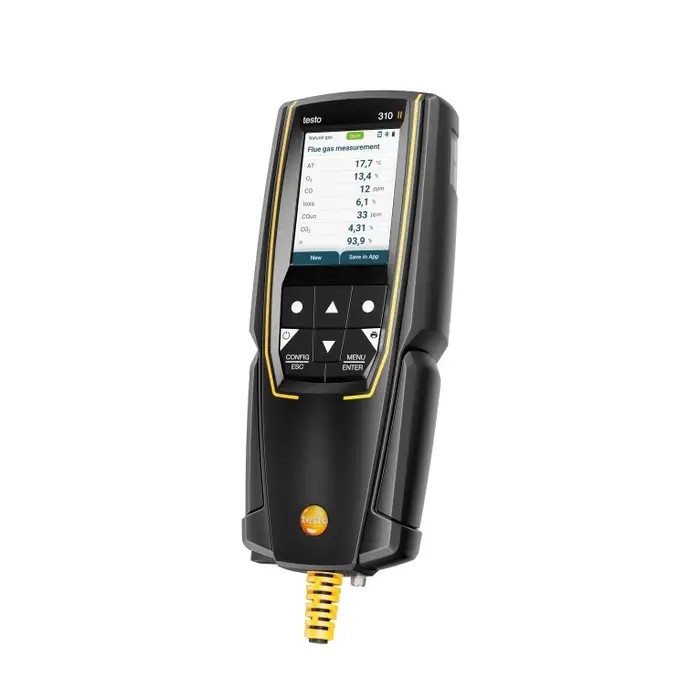

- 7-Line High-Contrast Graphic Display: Instead of cycling through multiple sub-screens to view your draft, CO, and excess air, all critical flue gas measurements fit on a single, customizable display.
- Testo Smart App Integration: Built-in Bluetooth allows you to view live readings on your phone or tablet, log measurement data, auto-fill customer reports, and send PDF service invoices directly from the truck.
- Simultaneous Parallel Measurements: You can conduct draft and combustion measurements simultaneously without switching menu paths or swapping tubing back and forth.
- Fast 30-Second Startup Zeroing: Fresh-air sensor zeroing finishes in 30 seconds, letting you get straight to work during cold winter morning calls.
AZ Testers Technician Field Review & Scorecard
To provide an objective, real-world evaluation, our field team put the Testo 310 II through rigorous testing across residential gas furnaces, oil burners, and light commercial boilers. Below is our formal AZ Testers rating breakdown evaluated on a 1 to 10 scale based on performance, ergonomics, durability, and value.
| Evaluation Category | AZ Testers Score (1–10) | Field Performance & Technician Notes |
|---|---|---|
| Performance & Sensor Speed | 9.0 / 10.0 | Rapid 30-second fresh-air zeroing cycle gets readings online quickly during winter heating rushes. |
| Measurement Accuracy & Precision | 8.6 / 10.0 | Dependable O2 and CO cell response; precise differential pressure resolution down to 0.001 inH2O. |
| Ease of Use & Ergonomics | 9.6 / 10.0 | High-contrast 7-line screen displays all key parameters at once; intuitive button layout works with gloves. |
| Durability & Build Quality | 8.8 / 10.0 | Impact-resistant rubberized housing survives typical 3-foot basement drops; strong rear magnets hold firm. |
| Smart Features & App Integration | 9.4 / 10.0 | Bluetooth 5.0 links seamlessly to the Testo Smart App for fast PDF generation and customer emailing. |
| Safety & Protection Features | 8.0 / 10.0 | Integrated condensate trap prevents water flooding, though lacking automatic high-CO air dilution. |
| Overall Value for Money | 9.8 / 10.0 | Best-in-class pricing for a brand-name combustion efficiency analyzer with full digital app support. |
| AZ TESTERS OVERALL RATING | 9.0 / 10.0 | EDITOR'S CHOICE: Excellent Entry-Level Flue Gas Analyzer for Residential/Light Commercial Service |
Technical Specifications & Field Performance Breakdown
To judge any combustion analyzer accurately, you have to look past the sales brochure and check sensor limits, response speeds, and real-world accuracy under harsh basement conditions.
Testo 310 II Specifications & Service Impact Matrix
| Feature / Metric | Manufacturer Specification | Field Technician Impact | Primary Function |
|---|---|---|---|
| O2 Measuring Range | 0 to 21.0 Vol.% (±0.2 Vol.%) | Precise excess air verification on gas and oil burners. | Core flue gas monitor reading |
| CO Measuring Range | 0 to 4,000 ppm (±20 ppm under 400 ppm) | Accurate ambient and flue CO tracking; uncompensated cell. | Safety & emissions stack gas analysis |
| Flue Temperature | 32°F to 752°F (0°C to 400°C) | Covers high-temp atmospheric stacks and low-temp PVC venting. | Calculating heat exchanger delta-T |
| Draft / Pressure | -8.0 to +8.0 inH2O (Draft) -16.0 to +16.0 inH2O (Pressure) |
Measures stack draft, static pressure, and manifold gas pressure. | Combustion efficiency analyzer math |
| Calculated Values | Efficiency (η: 0–120%), Flue Loss (0–99.9%), CO2 | Instant efficiency readout across natural gas, propane, and fuel oil. | System tuning & verification |
| Startup Zeroing | 30 Seconds | Fast fresh-air zeroing cycle gets readings quickly on cold jobs. | Calibration of exhaust gas analyzer |
| Battery Life | > 8 Hours (Lithium-Ion, 1500 mAh) | Easily lasts through a full day of 6 to 8 residential furnace tune-ups. | Power management for flue gas testing tool |
| Mounting | Dual Rear Magnets | Hands-free mounting on steel furnace cabinets and ductwork. | Jobsite ergonomics for gas tester |
| Weight & IP Rating | 1.5 lbs (660 g); IP40 Protection | Compact body fits in standard tool totes without pulling down your shoulder. | Daily portability of combustion testing tool |
Field Ergonomics & Real-World Operation

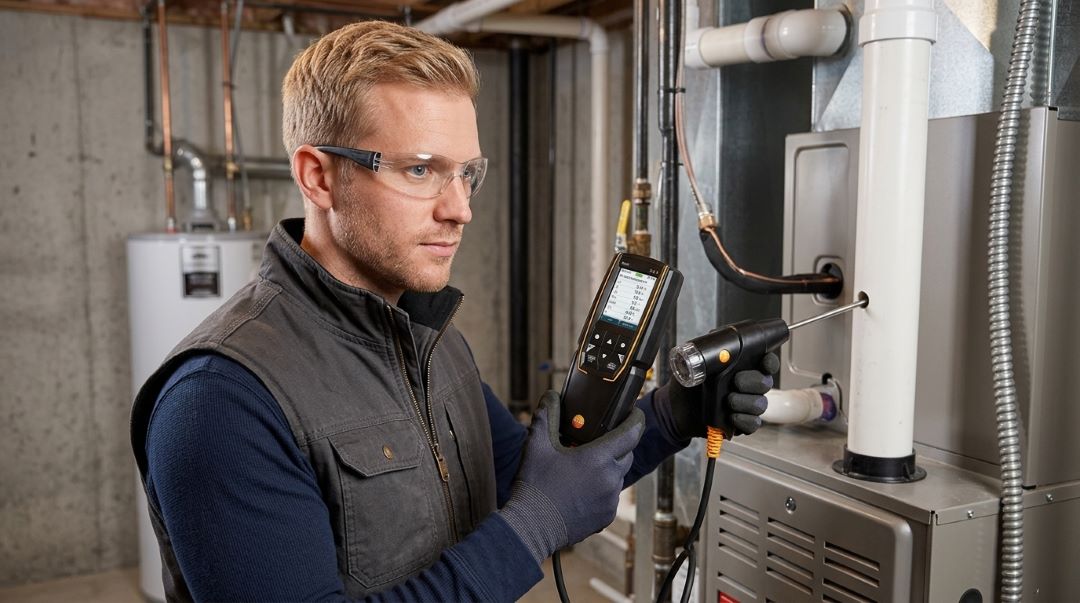

When you're squeezed between a water heater and a furnace cabinet in a cramped crawlspace, tool layout makes all the difference. The Testo 310 II shines in daily handling:
1. Hands-Free Magnetic Mounting
The back of the analyzer housing features rare-earth magnets that grip tight to appliance casing. You can mount the unit at eye level, route the 5.9-foot probe hose into the flue pipe sampling port, and leave both hands free to adjust gas valves or blower speed.
2. Condensate & Dirt Management
High-efficiency condensing equipment drops a lot of moisture into sample lines. The integrated condensate trap traps moisture before it reaches the electrochemical cells. Draining the trap takes two seconds—just pop open the rubber plug over a floor drain. The quick-replace particle filters inside the probe handle oil soot and dust efficiently.
3. Digital Reporting & Dual Printing Options
While older techs might still prefer thermal paper receipts printed via the optional Bluetooth printer, the integration with the Testo Smart App is a massive upgrade. You can lock in target values (O2, CO, draft, efficiency), attach photos of the furnace nameplate, generate a branded PDF report, and email it directly to the homeowner or property manager before packing your truck.
Pros and Cons: A Technician's Assessment
Pros
- Unbeatable Price-to-Performance Ratio: Offers full digital combustion, draft, and pressure diagnostics at a fraction of commercial-grade analyzer costs.
- Seamless App Connectivity: Bluetooth 5.0 pairing with the Testo Smart App streamlines record-keeping and customer reporting.
- Clear 7-Line Configurable Screen: Shows O2, CO, flue temp, ambient temp, draft, excess air, and efficiency on a single screen without endless scrolling.
- Fast 30-Second Zeroing: Rapid fresh-air zeroing reduces setup time during busy heating season rushes.
- Built-in Pressure Sensor: Integrated differential pressure sensing eliminates the need to carry a separate digital manometer for draft or manifold checks.
- Rugged Rubberized Enclosure: Drop-resistant housing and strong rear magnets hold up to daily mechanical room abuse.
Cons
- Non-Compensated CO Sensor: The standard CO cell does not include hydrogen (H2) compensation, meaning high-concentration H2 cross-sensitivity can slightly inflate CO numbers on dirty burns.
- No Sensor Expansion Slots: Unlike higher-tier models, you cannot upgrade or retrofit a 3rd sensor (such as NO or NO2) down the road.
- Fixed Probe Hose: The flue probe is permanently wired to the main tubing line rather than using a quick-connect bayonet coupling like the Testo 300 series.
Testo Combustion Analyzer Product Family Comparison
Selecting the right analyzer comes down to matching the tool to your typical work. Below is how the Testo 310 II compares to its sibling models across the Testo lineup.
Testo Combustion Analyzer Family Matrix
| Model | Target Market | Sensor Configuration | CO Range & Protection | Display Type | Bluetooth / App | Key Differentiator |
|---|---|---|---|---|---|---|
| Testo 310 II (Reviewed) | Residential & Light Commercial HVAC | O2, CO (Standard 2-Sensor) | 0 – 4,000 ppm (No Dilution) | 7-Line Graphic LCD | Yes (Testo Smart App) | Best budget entry model with full App connectivity. |
| Testo 310 Original | Basic Residential Heating | O2, CO (Standard 2-Sensor) | 0 – 4,000 ppm (No Dilution) | 4-Line Segment LCD | Basic IR Print Only | Legacy model; no app connectivity or configurable screen. |
| Testo 300 Smart-Touch | High-Volume Commercial Service | O2, CO (LongLife, up to 6 yrs) | 0 – 4,000 ppm (Optional Dilution) | 5.0" HD Touchscreen | Integrated Wi-Fi & Smart App | Full Android-style touchscreen with hotspot PDF reporting. |
| Testo 300 Pro NOx | Heavy Commercial / Industrial Boilers | O2, CO H2-Comp, NO | 0 – 30,000 ppm (Auto Dilution) | 5.0" HD Touchscreen | Integrated Wi-Fi & Smart App | In-flue zeroing, NOx emission testing, heavy industrial protection. |
Frequently Asked Questions (FAQs)
1. What is the difference between the original Testo 310 and the Testo 310 II?
The original Testo 310 features a basic 4-line display and relies strictly on an infrared printer for output. The upgraded Testo 310 II introduces a high-resolution 7-line graphic display, custom screen configuration, Bluetooth 5.0 connectivity, and full integration with the free Testo Smart App. This allows techs to stream real-time data to a phone and send digital PDF reports directly to clients.
2. Can the Testo 310 II measure gas manifold pressure and flue draft?
Yes. The Testo 310 II has built-in differential pressure sensors. It can perform differential pressure measurements (such as checking gas valve manifold pressure in inH2O or mbar) as well as stack draft checks through its specialized measurement menus.
3. Does the Testo 310 II require regular calibration?
Like all electrochemical flue gas testing tools, the O2 and CO sensors require periodic factory calibration (typically once a year depending on local regulation and usage). The unit performs an automatic 30-second fresh-air zeroing cycle every time it powers on to maintain day-to-day accuracy.
4. How long do the sensors last on the Testo 310 II?
Under normal residential service conditions, standard electrochemical cells last between 2 and 4 years. Keeping the water trap drained and regularly changing dirty inline particle filters prevents premature sensor degradation caused by moisture or soot fouling.
Final Verdict: Why the Testo 310 II is Worth Owning
If you are an HVAC service technician, plumber, or light commercial mechanic looking for a tool that delivers high-end digital capability without inflating your budget, the Testo 310 II Combustion Analyzer is worth owning.
What sets this unit apart from budget competitors is its balance of field utility and modern workflow integration. By pairing Testo's accurate sensor technology with Bluetooth connectivity to the Testo Smart App, it eliminates paper record headaches and streamlines customer communication. You get reliable oxygen readings, carbon monoxide protection, differential pressure testing, and automatic efficiency calculations packaged in a magnetized, drop-resistant body built for real trucks and real basements. For daily residential and light commercial service, it is one of the smartest investments you can make to improve job quality, speed up service calls, and protect homeowner safety.
